DIN 2-Piece High Platform Ball Valve

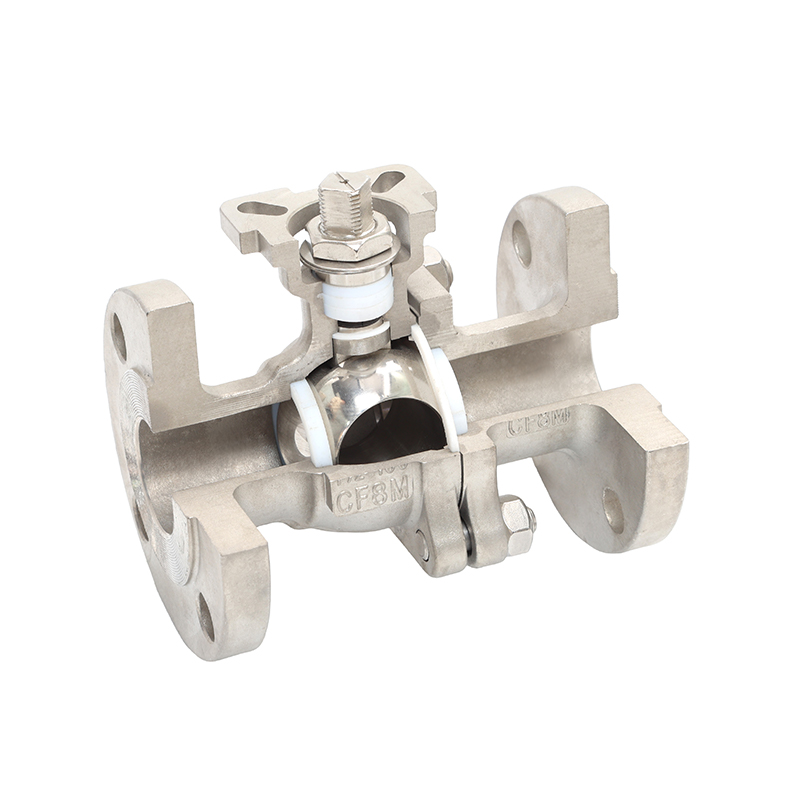

This DIN-standard 2-piece high-platform ball valve is engineered for corrosive and high-purity applications, featuring CF8M (316 stainless steel) construction. The DN65 size and PN16 pressure rating suit chemical, pharmaceutical, and food-grade industries. The high-platform design allows easy automation with actuators or gearboxes, while the 2-piece body ensures maintenance-friendly disassembly. The valve’s polished internals (Ra ≤0.8µm) prevent contamination, and the PTFE seats provide bubble-tight sealing. Compliance with DIN 3202 ensures dimensional accuracy for EU markets. Unlike WCB valves, CF8M offers good chloride resistance, making it suitable for offshore or marine environments.

Zhejiang Lizhi Metal Products Technology Co., Ltd.

About Us

Zhejiang Lizhi Metal Products Technology Co., Ltd. was established in 2003 and established a branch in Fujian in 2021: Fujian Zheli Alloy Casting Co., Ltd.

After more than 20 years of hard work, the company has strong technical strength and has established a production, learning and research integration with major domestic universities, forming its own product characteristics and technical advantages. The company mainly produces various precision castings and valve products such as valves, pumps, auto parts, marine parts, hardware and engineering machinery parts. The main materials are: austenitic stainless steel, carbon steel, duplex steel, nickel-based alloy, high silicon alloy, titanium alloy, etc. The annual output of various stainless steel castings is 8,000 tons (production capacity 12,000 tons/year). The company fully implements TUV: ISO9001-2015 and EU CE certification system management, and introduces 6S performance management lean production. The products are mainly sold to the chemical, shipbuilding, automotive, power, pharmaceutical, food and other industries, and the products are exported to Russia, Europe, North America, Japan and South Korea and other countries and regions.
